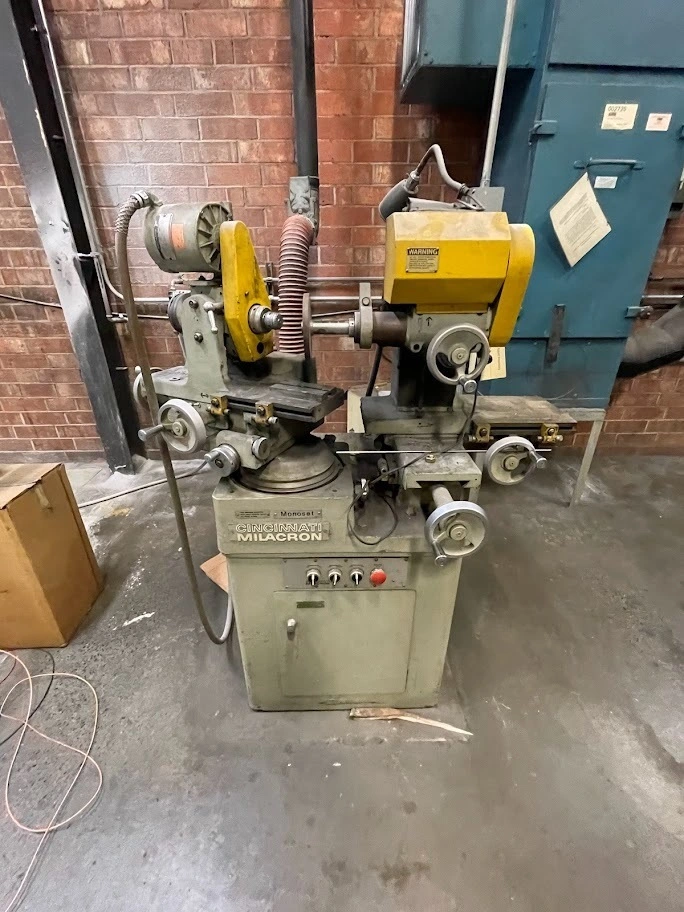

Cincinnati Monoset MT Tool & cutter Grinder

Description

SPECIFICATIONS:
Workhead Swing Over Main Slide – Maximum…………12″
Workhead Collet Hole – Maximum…………1-1/4″
Workhead Collet Hole – Minimum…………0.12″
Grinding Wheel Diameter – Maximum…………4″
Lead Generation by Spiral Lead Mechanism – Minimum…………1-13/16″
Lendth of Work Between Spindle & Tailstock Center…………6″
Workhead Main Slide Travel (L-R)…………6-3/4″
Workhead Offset Slide Travel – Total (F-B)…………5-1/2″
Workhead Front of Center…………3″
Workhead Read of Center…………2-1/2″
Workhead Turntable Swivel…………235 Degrees
Workhead Above and Below Center…………+/-40 Degrees
Wheelhead Slide Travel – Longitudinal (L-R)…………6-1/4″
Wheelhead Slide Travel – Vertical…………10-1/2″
Wheelhead Above Center…………4-1/2″
Wheelhead Below Center…………5″
Cross Slide Travel (F-B)…………7-1/2″
Cross Slide Front of Center…………3″
Cross Clide Rear of Center…………4-1/2″
Wheelhead Spindle Speeds (3)…………4000-5729-8000 RPM
Wheelhead Motor…………1/2 HP
Workhead Spindle Speeds…………0 – 850 RPM (Variable)
Dimensions – Approximate…………54″(L-R) x 56″(F-B) x 65″(H)
Weight – Approximate…………1,850 Lbs.

EQUIPPED WITH:
Baldor DC Drive Workhead, Variable Speed Controller
Precision Ball-Screws in All Axis
One-Shot Lubrication System
Set of Grinding Wheel Guards
Grinding Wheelhead Toothrest & Extension Bar
Adjustable Tail-Center Support
Diamond Bracket w/Workrest
Lower Workrest

*Preliminary specifications subject to verification.
